Definition

‌5G power supply ‌ refers to a power supply system specially designed for 5G communication equipment. Compared with the existing 3G and 4G communications, 5G communication has the characteristics of ultra-high speed and extremely low delay. The reason for these characteristics is that 5G communications use a higher frequency spectrum. Today's many application environments, such as computing and storage, communication switches and routers, and wireless communication, increasingly rely on data processing, in order to meet the huge data system under 5G communication, further promote the development of power circuits in 5G communication equipment. The entire power supply system must be highly energy efficient and high-density to provide the high level of power performance required.
The Super-Junction MOSFET series from LingxunMicro maximizes energy efficiency while maintaining reasonable power consumption, comprehensively improving the switching and on-off characteristics of the device. In optimizing all key aspects of power supply, overall costs are reduced through functional upgrades and process technology optimization.

With lower gate resistance, it can meet the needs of customers for higher energy efficiency and higher reliability, and the cost performance of products is further improved.

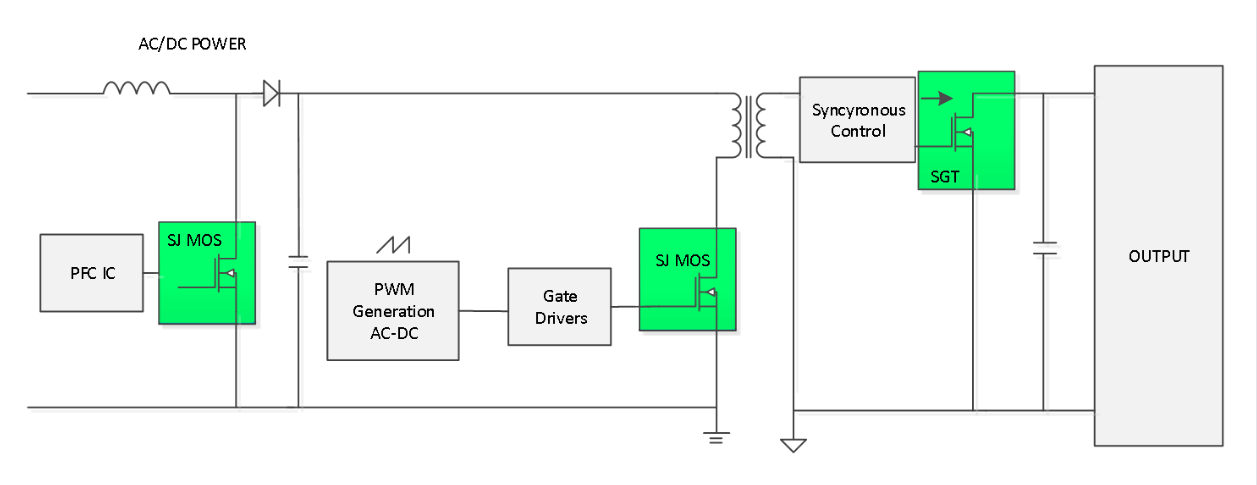

Topological graph

Recommend part No.:

PFC:

产品型号	封装	产品参数
LC65R380	TO-220F/TO-252	RDSON-typ VGS=10V：340mΩ \| VDSS：650V \| Io：14A
LC65R280	TO-220F/TO-252	RDSON-typ VGS=10V：238mΩ \| VDSS：650V \| Io：15A
LC65R190	TO-247	RDSON-typ VGS=10V：166mΩ \| VDSS：650V \| Io：22A
LC65R130	TO-220F/TO-247	RDSON-typ VGS=10V：120mΩ \| VDSS：650V \| Io：30A

Fly back:

产品型号	封装	产品参数
LC65R380	TO-220F/TO-252	RDSON-typ VGS=10V：340mΩ \| VDSS：650V \| Io：11A
LC65R280	TO-220F/TO-252	RDSON-typ VGS=10V：238mΩ \| VDSS：650V \| Io：15A
LC65R190	TO-247	RDSON-typ VGS=10V：166mΩ \| VDSS：650V \| Io：22A
LC65R130	TO-220F/TO-247	RDSON-typ VGS=10V：120mΩ \| VDSS：650V \| Io：30A

Synchronous rectification：

产品型号	封装	产品参数
LG60N10	PDFN5*6/TO-220C/TO-252/TO-263C	RDSON-typ VGS=10V：6.2mΩ \| Qg：35.8 nC \| Io：30A
LG80N10	PDFN5*6/TO-220C/TO-252/TO-263C	RDSON-typ VGS=10V：7.4mΩ \| Qg：10 nC \| Io：80A
LG100N10	PDFN5*6/TO-220C/TO-252/TO-263C	RDSON-typ VGS=10V：5.3mΩ \| Qg：43 nC \| Io：100A
LG120N10	PDFN5*6/TO-220C/TO-252/TO-263C	RDSON-typ VGS=10V：4.5mΩ \| Qg：110 nC \| Io：1200A
LG130N10	TO-220C/TO-252/TO-263C	RDSON-typ VGS=10V：4.0mΩ \| Qg：42 nC \| Io：130A
LG230N10	TO-220C/TO-252/TO-263C	RDSON-typ VGS=10V：2.8mΩ \| Qg：95 nC \| Io：230A
LG240N10	TO-220C/TO-263C	RDSON-typ VGS=10V：2.3mΩ \| Qg：143 nC \| Io：240A
LG90N15	TO-220C/TO-263C	RDSON-typ VGS=10V：8.2mΩ \| Qg：30 nC \| Io：90A
LG130N15	TO-220C/TO-263C	RDSON-typ VGS=10V：5.2mΩ \| Qg：83 nC \| Io：130A
LG200N15	TO-220C/TO-263C	RDSON-typ VGS=10V：6.2mΩ \| Qg：35.8 nC \| Io：200A
