Definition
The English full name of PFC is "Power Factor Correction", meaning "power factor correction", power factor refers to the relationship between effective power and total power consumption (apparent power), that is, the ratio of effective power divided by the total power consumption (apparent power). Basically, the power factor can measure the degree of effective use of electricity, and the higher the power factor value, the higher the power utilization rate.
PFC (power factor correction) topology has three common working modes: CCM current continuous, DCM discontinuous and CRM critical. PFC topology has relatively high requirements for MOS tubes. Under the condition of ensuring system efficiency and temperature rise, system stability should be improved as much as possible. The control loop speed of PFC topology is relatively slow. In order to smooth 100Hz-120Hz AC rectification ripple, the reaction time of PFC topology must reach several 10ms. If there is no special optimization of the control circuit and IC, the PFC topology often produces a large impact current during the startup process, and the impact current can reach 5-10 times of normal operation, especially in the repeated switching process, which is a more stringent test for the MOS tube. MOS tube in PFC topology is straddled between high voltage and ground, and the EAS capability of MOS tube is also an important reference to evaluate its reliability during safety test. Therefore, the switching characteristics (Ciss), EAS capability, surge resistance and electrostatic protection of MOS tube need to be considered when selecting MOS tube in PFC circuit.

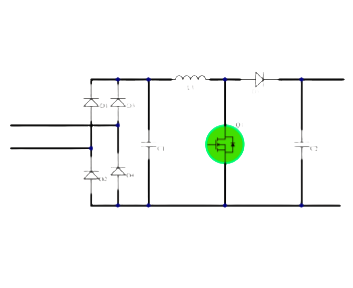

Topological graph
Recommend part No.
200W
CS13N50 TO-220F
CS16N50 TO-220F/TO-247/TO-247S
CS18N50 TO-220F/TO-247/TO-247S
LC65R380 TO-252/TO-220F
2000W
CS20N50 TO-220F/TO-247/TO-247S
CS25N50 TO-220F/TO-247/TO-247S
CS28N50 TO-247/TO-247S
CS30N50 TO-247/TO-247S
CS35N50 TO-247/TO-247S
CS40N50 TO-247
LC65R190 TO-220F/TO-247
LC65R130 TO-220F/TO-247
5000W
CS40N50 TO-247
LC65R099 TO-220F/TO-247
LC65R075 TO-220F/TO-247
