‌LLC switching power supply is a kind of power converter with high efficiency and high power density. The basic principle of the switching power supply is to realize efficient conversion and stable output of electric energy through the LLC resonant topology.

The LLC converter consists of inductors (L), capacitors (C), and traditional switching power supply topologies with three major characteristics: zero voltage switching (ZVS), constant switching frequency, and constant voltage output. Compared with traditional switching power supply, LLC resonant switching power supply circuit has the advantages of high efficiency, low noise, wide input voltage range and good stability. An LLC switching power supply is a three-stage power converter consisting of an LLC resonant topology circuit and a power factor correction (PFC) pre-stage, with the primary goal of achieving a power supply design with high efficiency, high power density and low electromagnetic interference (EMI).

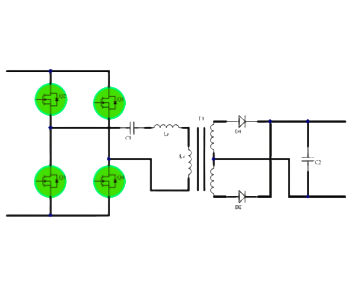

Topological graph

Recommend part No.

200W

CS13N50 TO-220F

CS16N50 TO-220F/TO-247

CS18N50 TO-220F/TO-247

LC65R380 TO-252/TO-220F

2000W

CS20N50 TO-220F TO-247

CS25N50 TO-220F TO-247

CS28N50 TO-247S TO-247

CS30N50 TO-247S TO-247

CS35N50 TO-247S TO-247

CS40N50 TO-247S TO-247

LC65R190 TO-220F TO-247

LC65R130 TO-220F TO-247

5000W

CS40N50 TO-247

LC65R099 TO-220F TO-247

LC65R075 TO-247
